HTTP Digest Configuration

HTTP Digest authentication provides similar setup requirements to HTTP Basic, and adds the benefit that passwords are not sent over the network in plain text. The tool used to create a proper digest file also comes with the Apache installation: htdigest. If this tool is not present on your system, there are a number of web based tools that will also produce a valid htpasswd file; google for "htdigest generator" for examples.

Like HTTP Basic authentication, a digest file will need to exist before configuration of this authentication scheme takes place:

$ htdigest -c data/users.htdigest "Secure API" ralph
Adding password for ralph in realm Secure API
New password:
Re-type new password:
$

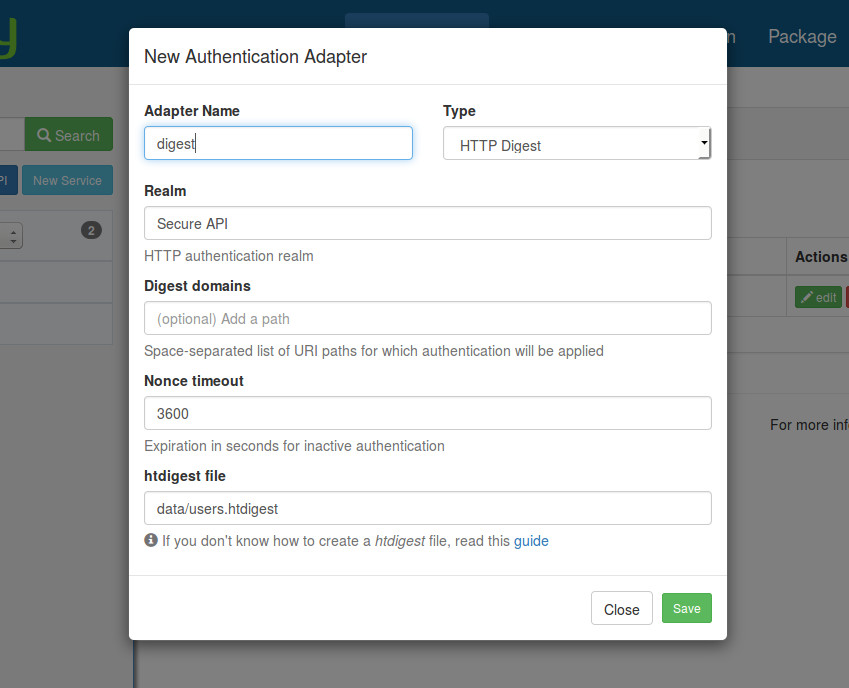

Once the file has been created, its path can be used to configure the required htdigest file input of the HTTP Digest authentication configuration screen, shown here:

Configuring HTTP Digest settings

The configuration data will be stored in config/autoload/local.php under the key ['zf-mvc-auth']['authentication']['adapters']['digest'] where digest is the name of the adapter chosen in the previous screenshot. You can have many authentication adapters in your configuration file, and choose the one to be used for your API. For instance, this is an example of config with two authentication adapters (HTTP Basic and Digest).

// config/autoload/local.php
return [
    'zf-mvc-auth' => [
        'authentication' => [
            'adapters' => [
                'basic' => [
                    'adapter' => 'ZF\\MvcAuth\\Authentication\\HttpAdapter',
                    'options' => [
                        'accept_schemes' => [
                            0 => 'basic',
                        ],
                        'realm' => 'api',
                        'htpasswd' => 'data/users.htpasswd',
                    ],
                ],
                'digest' => [
                    'adapter' => 'ZF\\MvcAuth\\Authentication\\HttpAdapter',
                    'options' => [
                        'accept_schemes' => [
                            0 => 'digest',
                        ],
                        'realm' => 'Secure API',
                        'digest_domains' => '',
                        'nonce_timeout' => '3600',
                        'htdigest' => 'data/users.htdigest',
                    ],
                ],
            ],
        ],
    ],
];

At this point, HTTP Digest authentication has been setup and is ready to use.

GET /foo HTTP/1.1
Accept: application/json
Authorization: Digest username="ralph", realm="Secure API", nonce="2f3fdb4e7670ae34f0b5c092d720961c", uri="/foo", response="eaaf8d5ac41022635277a4196b747ba1", opaque="e66a41ca5bf6992a5479102cc787bc9", algorithm="MD5", qop=auth, nc=00000001, cnonce="c07b87e1b0cc5115"


HTTP/1.1 200 OK
Content-Type: application/json

{
    "foo": "bar"
}

And a failed attempt at authentication:

GET /foo HTTP/1.1
Accept: application/json
Authorization: Digest clearly-invalid-token


HTTP/1.1 401 Unauthorized
Content-Type: application/problem+json

{
    "type": "http://www.w3c.org/Protocols/rfc2616/rfc2616-sec10.html",
    "title": "Unauthorized",
    "status": 401,
    "detail": "Unauthorized"
}

Important notes:

  • Your client should be capable of properly encoding the HTTP Digest Authorization header, and able to fulfill the digest handshake.
  • In production, ensure a htdigest file can be utilized in the same relative location as in development, even if the htdigest was not checked into your VCS.
  • No Authorization header in the request implies that the "guest" identity will be used.
