Customizing API Documentation

The API documentation feature is provided via the zf-apigility-documentation module. This module provides an object model of all captured documentation information, including:

  • All APIs available.
  • All Services available in each API.
  • All Operations available in each API.
  • All required/expected Accept and Content-Type request headers and expected Content-Type response headers for each available API Service Operation.
  • All configured fields for each service.

Moreover, it provides a configurable MVC endpoint for returning documentation:

  • Documentation is delivered in a serialized JSON structure when the Accept header specifies JSON.
  • Documentation is delivered in HTML when the Accept header specifies HTML.
  • End-users may configure alternate/additional formats via content-negotiation.

There are two ways to provide custom formats for your documentation:

  • For HTML, XML, or other "markup" styles of documentaton, you can provide alternate view scripts for the ZF\Apigility\Documentation\Controller.
  • For other formats, you can use content negotiation, providing an alternate view model and view renderer.

HTML Customization

If you want to customize the markup of your API documentation, you can have a look at the source code of the zf-apigility-documentation module. You will need to perform the following steps:

  • Create a view script.
  • Configure the view to use your view script.

Creating a view script

You need at least one view script to act as an entry point; this will be the view script selected by the zf-apigility-documentation controller and rendered by the application. That view script will receive a type variable which will indicate what documentation is being requested, and then additional variables based on that type.

We recommend that your view script use the type to select additional view scripts to render; this will allow you to reduce complexity in your view script. To see an example, look at the Bootstrap-style view scripts in the zf-apigility-documentation repository; the show.phtml view script is the entry point for all HTML views we provide. We highly recommend copying these view scripts and customizing them for your markup, instead of starting from scratch.

If you decide to create your own view scripts, the following sections detail the variables present based on the type, and what operations are available.

apiList

The apiList type will also have an apis variable passed to the view. The apis variable contains a nested array structure:

[
    [
        'name' => 'API_Name',
        'versions' => [
            1,
            2, // etc.
        ],
    ],
]

In other words, each item in the array is an associative array with two keys, name and versions.

api

The api type will also have a documentation variable passed to the view, which will be an instance of ZF\Apigility\Documentation\Api. The following methods are exposed by that instance:

  • getName(), which provides the API name
  • getVersion(), which provides the currently selected version
  • getServices(), which provides an iterable set of ZF\Apigility\Documentation\Service instances. See the next section for methods exposed by that object.

service

The service type will have a documentation variable passed to the view, which will be an instance of ZF\Apigility\Documentation\Service. The following methods are exposed by that instance:

  • getName(), which returns the service name
  • getDescription(), which returns the service description
  • getRoute() returns the route match string
  • getRouteIdentifierName() returns the route segment name indicating the identifier
  • getFields(), which returns an iterable set of ZF\Apigility\Documentation\Field instances.
  • getOperations(), which returns an iterable set of ZF\Apigility\Documentation\Operation instances. For REST services, these will be the operations for collections.
  • getEntityOperations(), which, in the case of REST services, returns an iterable set of Operation instances for entities.
  • getRequestAcceptTypes() returns an array of allowed Accept request header media types
  • getRequestContentTypes() returns an array of allowed Content-Type request header media types
  • getResponseStatusCodes() returns an array of expected response status codes and reason phrases (an associative array with the members code and message)

Operation instances expose the following methods:

  • getHttpMethod() returns the HTTP method for the operation
  • getDescription() returns the operation description
  • getRequestDescription() returns the description for the operation request
  • getResponseDescription() returns the description for the operation response

Field instances expose the following methods:

  • getName() returns the field name
  • getDescription() returns the field description
  • isRequired() indicates whether or not the field is required

Available view helpers

zf-apigility-documentation provides several view helpers related to documentation tasks. These include:

  • agAcceptHeaders(ZF\Apigility\Documentation\Service $service): given a service, creates Bootstrap list-group-item's of the allowed Accept media types, properly escaped for HTML.
  • agContentTypeHeaders(ZF\Apigility\Documentation\Service $service): just like the previous, but for allowed Content-Type media types.
  • agServicePath(ZF\Apigility\Documentation\Service $service, ZF\Apigility\Documentation\Operation $operation): given a service and operation, returns the URI for a given operation.
  • agStatusCodes(ZF\Apigility\Documentation\Operation $operation): given an operation, returns a Bootstrap list-group with the expected resposne status codes and reason phrases, properly escaped for HTML.

Configuring the view script

In order to expose your custom documentation markup, you will need to tell the Zend Framework 2 View Manager to select your own view script. This can be done with the following configuration:

[
    'view_manager' => [
        'template_map' => [
            'zf-apigility-documentation/show' => 'path/to/your/custom/view_script.phtml',
        ],
    ],
]

This can be placed in a ZF2 module's configuration, or in your global application configuration (e.g., config/autoload/global.php).

Custom documentation formats via content negotiation

If you are providing a serialization form of documentation -- for example, a custom JSON representation, a YAML representation, etc. -- you may want to instead consider content negotiation.

Per the API primer, content negotiation is the act of matching the Accept request header to a response representation. In terms of Apigility, you will need to do the following:

  • Create a custom view model.
  • Optionally, create a custom view renderer.
  • Optionally, create a view strategy.
  • Create content negotiation configuration mapping your view model to one or more Accept media types

Creating a view model

Creating a custom view model can be done by extending Zend\View\Model\ViewModel, or any of the other view model types present in Zend Framework 2. If you are providing a custom JSON representation, we recommend extending ZF\ContentNegotiation\JsonModel from the zf-content-negotiation model, as it provides features not present in the Zend Framework 2 variant (including serialization of JsonSerializable objects, detection of zf-hal entity and collection objects, and error handling).

Creating a view renderer

Creating a view renderer is only necessary if you have specialized serialization needs. As an example, zf-hal provides a specialized renderer for application/hal+json, as it performs logic for extracting objects to arrays, injecting relational links, and embedding resources. The zf-apigility-documentation-swagger module does not need to provide a renderer, as the standard Zend\View\Renderer\JsonRenderer is sufficient; it is able to customize the payload structure easily in its custom ViewModel and allow the JsonRenderer to take care of the rest.

Creating a custom renderer means implementing Zend\View\Renderer\RendererInterface; and Apigility leaves such implementation as an exercise to the reader.

Creating a view strategy

Creating a view strategy means writing an event listener that will introspect the view model, determine if it matches, and then select and return a view renderer. The strategy optionally also provides an event listener that determines if it was responsible for selecting the view renderer, and, if so, injects the response object with appropriate headers.

The following is the SwaggerViewStrategy from the zf-apigility-documentation-swagger module; it provides a typical example of a view strategy as used with Apigility:

namespace ZF\Apigility\Documentation\Swagger;

use Zend\EventManager\AbstractListenerAggregate;
use Zend\EventManager\EventManagerInterface;
use Zend\View\Renderer\JsonRenderer;
use Zend\View\ViewEvent;

class SwaggerViewStrategy extends AbstractListenerAggregate
{
    /**
     * @var ViewModel
     */
    protected $model;

    /**
     * @var JsonRenderer
     */
    protected $renderer;

    /**
     * @param JsonRenderer $renderer
     */
    public function __construct(JsonRenderer $renderer)
    {
        $this->renderer = $renderer;
    }

    /**
     * @param EventManagerInterface $events
     * @param int $priority
     */
    public function attach(EventManagerInterface $events, $priority = 200)
    {
        $this->listeners[] = $events->attach(ViewEvent::EVENT_RENDERER, [$this, 'selectRenderer'], $priority);
        $this->listeners[] = $events->attach(ViewEvent::EVENT_RESPONSE, [$this, 'injectResponse'], $priority);
    }

    /**
     * @param ViewEvent $e
     * @return null|JsonRenderer
     */
    public function selectRenderer(ViewEvent $e)
    {
        $model = $e->getModel();
        if (! $model instanceof ViewModel) {
            return;
        }

        $this->model = $model;
        return $this->renderer;
    }

    /**
     * @param ViewEvent $e
     */
    public function injectResponse(ViewEvent $e)
    {
        if (! $this->model instanceof ViewModel) {
            return;
        }

        $response = $e->getResponse();
        if (! method_exists($response, 'getHeaders')) {
            return;
        }

        $headers = $response->getHeaders();
        $headers->addHeaderLine('Content-Type', 'application/vnd.swagger+json');
    }
}

The above strategy selects the standard JsonRenderer if the ZF\Apigility\Documentation\Swagger\ViewModel is detected for a view model. When the "response" event is triggered, it checks to see if the selected view model is recognized, and then injects a Content-Type header with the application/vnd.swagger+json media type. This ensures that when we return JSON to the user, the content type accurately reflects the JSON structure we return.

You'll also notice that the above strategy uses dependency injection in order to receive the JsonRenderer instance; you will need to setup an appropriate factory for the Zend Framework 2 ServiceManager so that you can receive the instance.

Finally, You will need to register your view strategy at some point. You have two options for when to register the strategy:

  • During bootstrap (indicating it will register every single request, regardless of whether or not the MVC render event is ever triggered).
  • During the MVC render event, at high priority.

In the first, case, the code might look like this:

namespace YourApi;

class Module
{
    /* ... */

    public function onBootstrap($e)
    {
        $app      = $e->getTarget();
        $services = $app->getServiceManager();
        $view     = $services->get('View');

        $events = $view->getEventManager();
        $events->attach($services->get('YourApi\ViewStrategy'));
    }
}

If the render event never triggers, however, there's no need to have the View in scope, which is why we recommend being more conservative about when you register your strategy:

namespace YourApi;

class Module
{
    /* ... */

    public function onBootstrap($e)
    {
        $app    = $e->getTarget();
        $events = $app->getEventManager();
        $events->attach('render', [$this, 'onRender'], 200);
    }

    public function onRender($e)
    {
        $app      = $e->getTarget();
        $services = $app->getServiceManager();
        $view     = $services->get('View');

        $events = $view->getEventManager();
        $events->attach($services->get('YourApi\ViewStrategy'));
    }
}

Configuring content negotiation

Next, you will need to create content negotiation rules. Content negotiation rules map a view model to one or more media types that, when present in the Accept request header, will result in selection of your view model.

There are two ways to configure content negotiation:

  • In the Apigility Admin UI
  • In your API module's configuration

Content Negotiation in the Apigility Admin UI

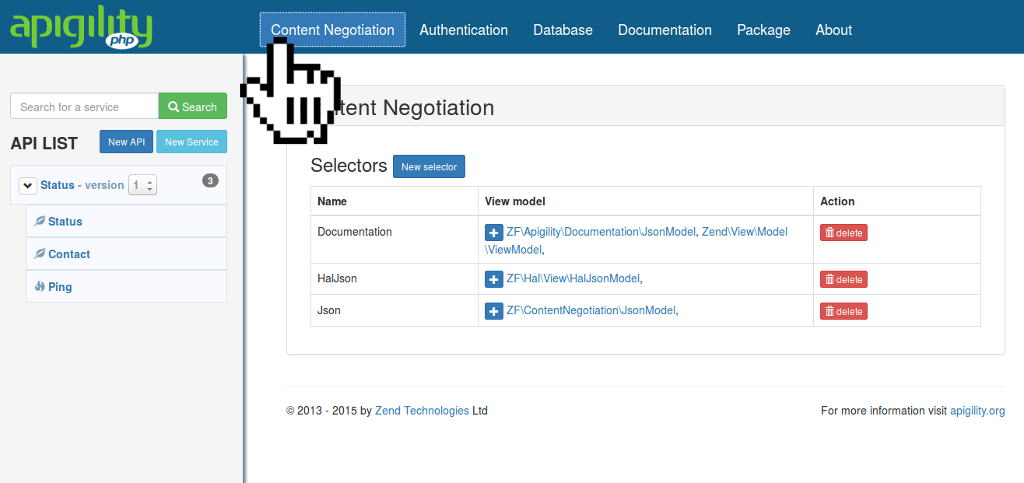

You can select the "Content Negotiation" page from the top menu of the Apigility UI.

Edit Documentation Selector

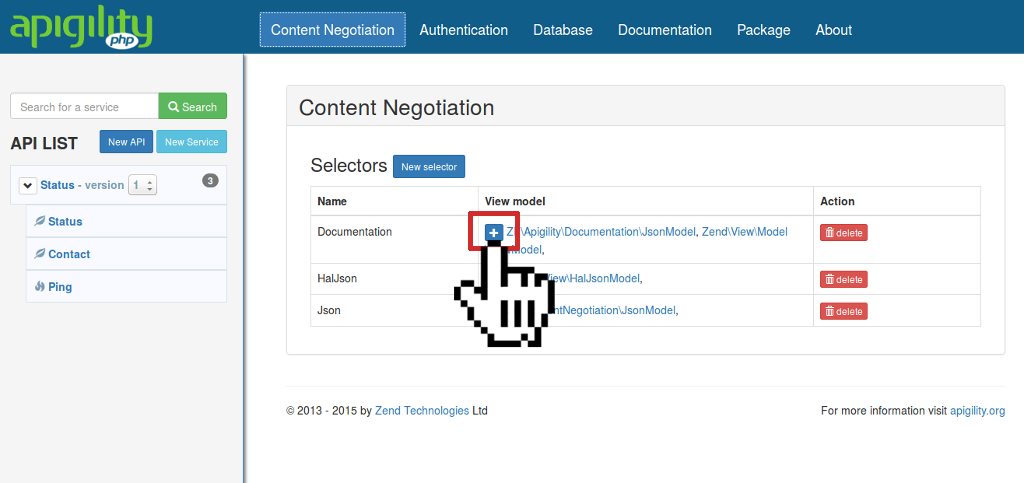

You can easly add new selector and then new view models, just click on "New selector", insert a name, click on Save and the add the view model clicking on the plus (+) button.

Add View Model

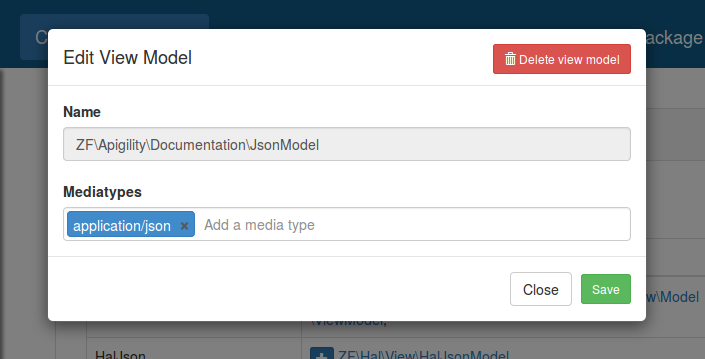

When you add a view model, you can specify media types following the IETF media type specifications:

Media Types

Content Negotiation manual configuration

You can configure content negotiation rules manually as well. We recommend writing these to your config/autoload/global.php file if they are specific to your application; if they will be part of a module you will distribute later, write them to your module's config/module.config.php file. Either way, the configuration schema remains the same.

You will write under the zf-content-negotiation top-level key, in a selectors subkey, and within the Documentation sub-subkey. Each element of this array is a view model name as the key, with an array of media types as the value.

[
    'zf-content-negotiation' => [
        'selectors' => [
            'Documentation' => [
                'YourApi\RamlViewModel' => [
                    'application/raml+yaml',
                ],
            ],
        ],
    ],
]

The above configuration adds to the existing Documentation content negotiation selector, and tells it that it can cast the view model created by the service to your new view model in order to return documentation in your custom format.

Requesting alternate documentation formats

All the API documentation formats are driven by content negotiation (using the zf-content-negotiation module). This means you can specify the format you wish to receive via the Accept header.

For example, if you want to retrieve the API documentation data in JSON format you can use the following request:

GET /apigility/documentation[/api[/service]] HTTP/1.1
Accept: application/json

where [api] is the name of the API and [service] is the name of the REST or RPC service. To get the same result in Swagger format, you would send the following request:

GET /apigility/documentation[/api[/service]] HTTP/1.1
Accept: application/vnd.swagger+json

And for HTML:

GET /apigility/documentation[/api[/service]] HTTP/1.1
Accept: text/html
